Quick Details

  • Type: Pathological Analysis Equipments
  • Brand Name: Sunbright
  • Place of Origin: Shanghai, China (Mainland)
  • Model Number: SUN-603K
  • Product name: SUN-603K clinical medical vital sign patient monitor ambulance
  • display size: 12.1" LCD
  • ECG: 3/5 lead
  • graphic trends and date storage: 96-hour tabular
  • NIBP dural over pressure protetion: yes
  • Isolated floating: yes
  • anti defibrillation protected: yes
  • anti high-frequency interference: yes
  • RESP: yes
  • SPO2: yes

Packaging & Delivery

Packaging Details Air-worthy packing/Sea-worthy packing for China direct manufacturer cheap price good quality patient monitor with ECG 2-TEMP NIBP SpO2 RESP PR/HR
Delivery Time within three working days
Product Description

China direct manufacturer cheap price good quality patient monitor with ECG 2-TEMP NIBP SpO2 RESP PR/HR




Detailed Product Description.

This equipment can monitor such parameters as ECG, RESP, SpO2, NIBP, and Dual- channel TEMP. It integrates parameter measuring module, display and recorder in one device to form a compact
and portable device. At the same time, its built-in replaceable battery provides convenience for

patient moving.

Features

* Elegant appearance, clear marks, standard interface, oxyCRG SCREEN, trend graph, big characters,
other BED observation, which are convenient for user.
* Be applicable for adult, pediatric and neonatal.
* Standard parameters of ECG, RESP, NIBP, SpO2 and dual-channel TEMP. IBP, CO2, Built-in printer,
curving handle, moving bracket and hanging bracket are optional.
* Operation interface with Chinese and English. Finish all operations by keys and knobs. (Optional languages: French, German, Italian, Dutch, Portuguese, Turkish, Spanish, Poland.)
* 12.1'' color TFT LCD with high-resolution displays patient parameter and waveform, and alarm,
bed NO, clock, state and other information provided by the monitor synchronously.
* Monitoring contents, scan speed, volume and output contents can be set optionally.
* Storage of 480-hour trend data, and review of 40-second holographic waveform.
* Storage and review of 72-hour ECG waveform.
* Function of NIBP review, storage for up to 2400 NIBP data.
* Adopt digital SpO2 technology, which has strong anti-interference and anti-weak filling capability.
* Calculation of drug concentration.
* Network: connecting with central station, other Bed observation and software updating. Connection
mode: wireless and wired.
* Built-in rechargeable battery for uninterrupted monitoring.
* Anti-high frequency surgical unit, defibrillation-proof(requirement for special leads).
* Analysis function for heart rate variability(HRV) (optional)










ECG














Lead Mode 3-lead and 5-lead are optional

Lead Selection I, II, III, avR, avL, avF, V

Wave 5-lead: 2 channels

3-lead: 1channel

Gain ×2.5mm/mV, ×5.0mm/mV, ×10mm/mV, ×20mm/mV

HR Measuring and Alarm Range

Range 15 ~ 300 bpm

Accuracy ±1% or ±1bpm, which is greater

Alarm Accuracy ±2bpm

Resolution 1 bpm


CMRR
Monitor ≥ 100 dB

Surgery ≥ 100 dB

Diagnosis ≥ 60 dB



Bandwidth
Surgery 1 ~ 20 Hz(+0.4dB,-3dB)

Monitor 0.5 ~ 40 Hz(+0.4dB,-3dB)

Diagnosis 0.05~75Hz(+0.4dB,-3dB); 76Hz~150Hz(+0.4dB,-4.5dB)

Calibration Signal 1 mV (Vp-p), ±5% Accuracy
ST Segment Monitoring
Measuring and Alarm Range -0.6 mV~ + 0.8 mV


ARR
ARR Detecting Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY,

TRIGEMINY,R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS,

PNP, PNC
Alarm
Available
Review
 Available

Scan Speed for ECG

Waveform is adjustable
12.5mm/s accuracy ±10%

25mm/s accuracy±10%

50mm/s accuracy±10%



Respiration
Method R-F(RA-LL) Impedance

Differential Input Impedance >2.5 MΩ

Measuring Impedance Range 0.3~5.0Ω

Baseline Impedance Range 100Ω– 2500Ω

Bandwidth 0.3 ~ 2.5 Hz



Resp. Rate
Measuring and Alarm Range 0~120rpm

Resolution 1 rpm

Measuring Accuracy ±2 rpm

Alarm Accuracy ±3rpm

Apnea Alarm 10 ~ 40 S





NIBP
Method Oscillometry

Mode Manual, Auto, continuous

Measuring Interval in AUTO Mode 1 /2 /3 /4 /5/ 10/ 15/ 30 /60 /

90/120/240/480/960 Min

Measuring Period in Continuous Mode 5 Min

Measuring and Alarm Range 10~270mmHg

Alarm Type SYS, DIA, MEAN





Resolution
Pressure 1mmHg

Cuff Pressure ±3 mmHg

Accuracy ±10% or ±8mmHg, which is greater

Over-pressure Protection:

Adult Mode 315±10 mmHg

Pediatric Mode 265±10 mmHg

Neonatal Mode 155±10 mmHg




SpO2
Measuring Range 0 ~ 100 %

Alarm Range 0 ~ 100 %

Resolution 1 %

Accuracy 70% ~ 100% ±2%

0% ~ 69% unspecified



Pulse Rate(PR)
Measuring and Alarm Range 0~250bpm

Resolution 1bpm

Measuring Accuracy ±2bpm or ±2%, which is greater

Alarm Accuracy ±2bpm





TEMP
Channel dual-channel

Measuring and Alarm Range 0 ~ 50°C

Resolution 0.1°C

Accuracy ±0.1°C

Actualization Interval about 1 Sec.

Average Time Constant < 10 Sec.

Alarm responding Time ≤2min











EtCO2
Method Sidestream or Mainstream

Measuring Range for CO2 0~150mmHg

Resolution for CO2:

0.1 mm Hg 0 to 69 mm Hg

0.25 mm Hg 70 to 150 mm Hg

Accuracy for CO2: 0 – 40 mm Hg ±2 mm Hg

41 – 70 mm Hg ±5%

71 – 100 mm Hg ±8%

101 – 150 mm Hg ±10%

Respiration Rate>80BPM ±12%

AwRR Range 2~150 rpm

AwRR Accuracy ±1BPM

Apnea Alarm Available




IBP
Channel dual-channel

Label ART, PA, CVP, RAP, LAP, ICP, P1, P2

Measuring and Alarm Range -50~350 mm Hg

Resolution 1 mm Hg

Accuracy ±2% or 1mm Hg, which is greater

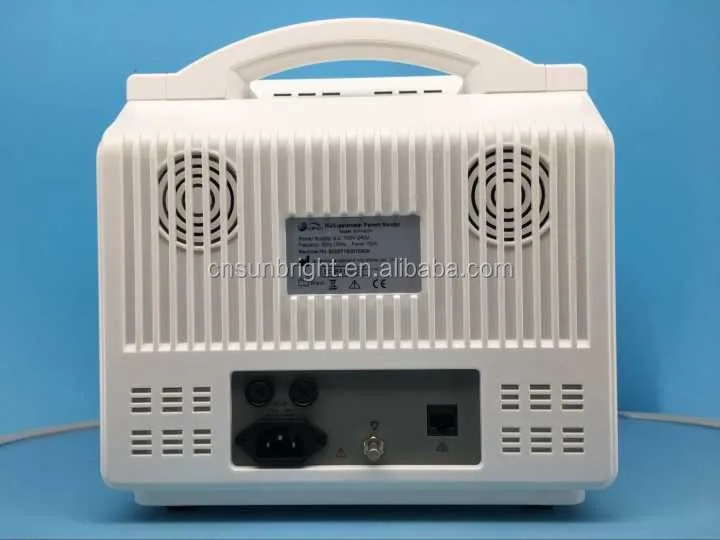

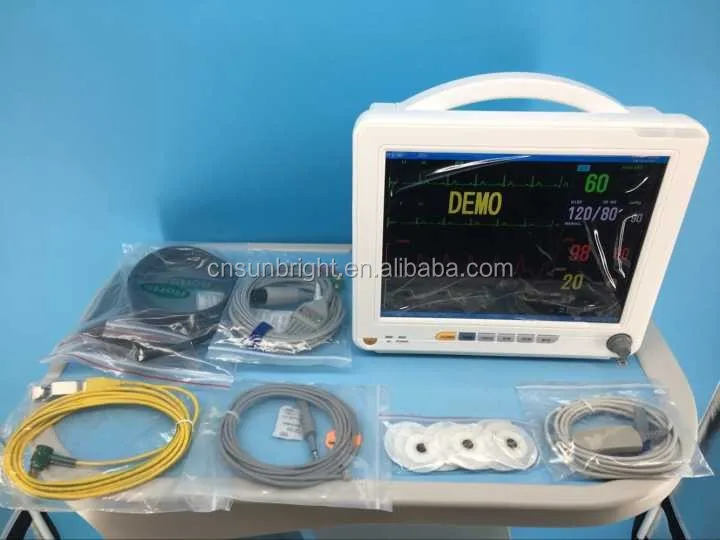

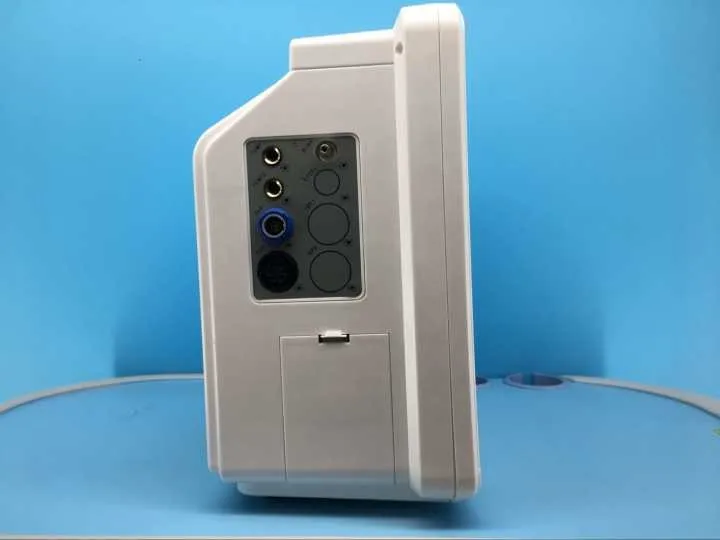

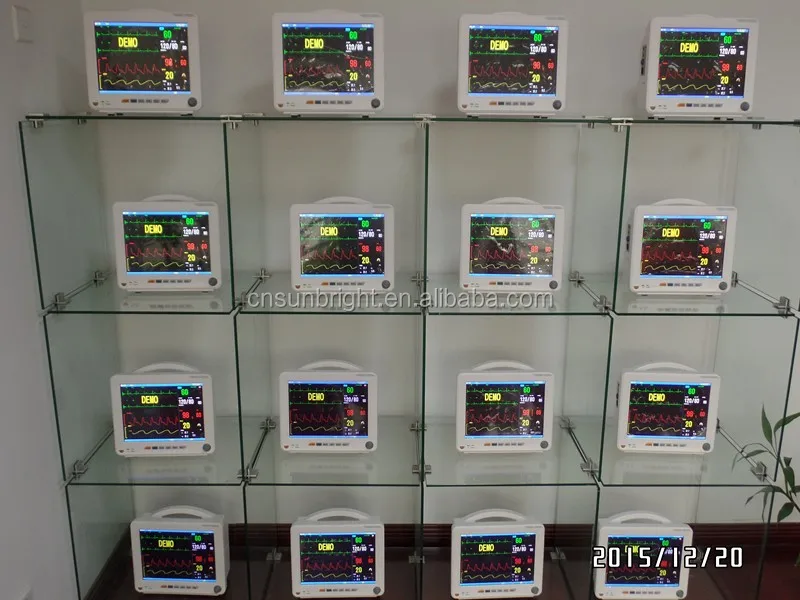

Detailed Images

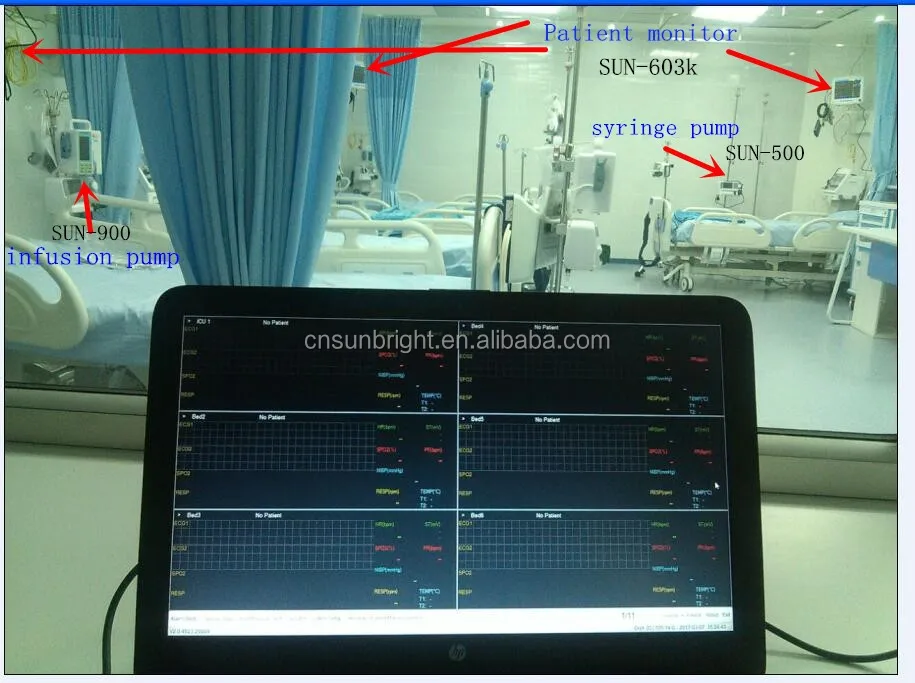

Customer's Hospital

Related Products

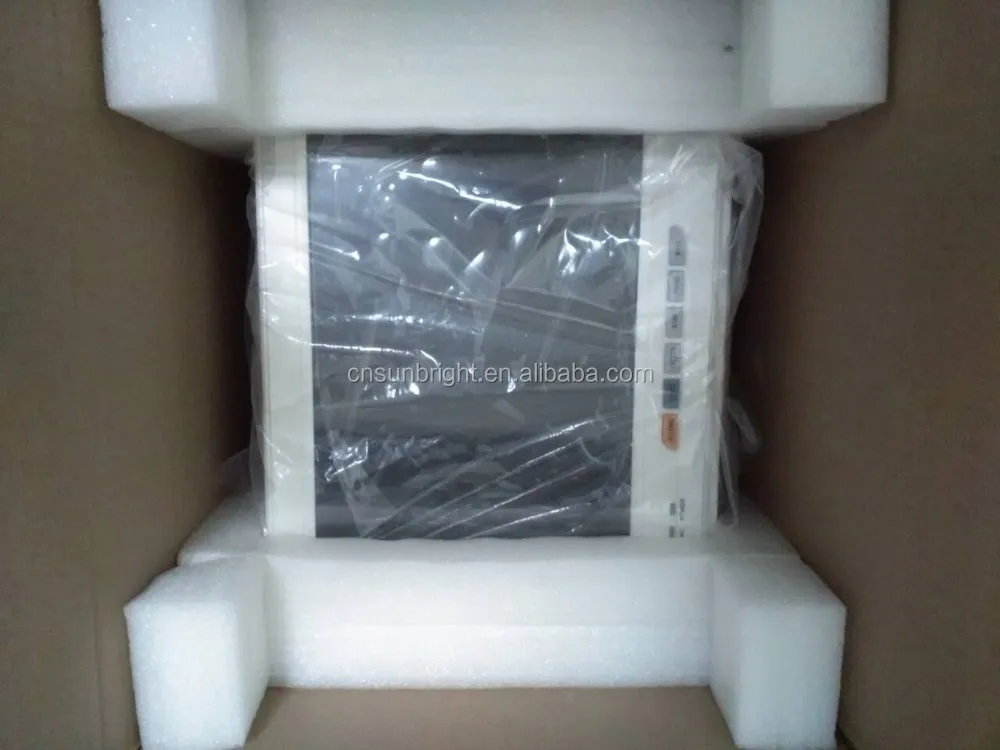

Packing & Delivery

1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
